Class 1 Air Ducts

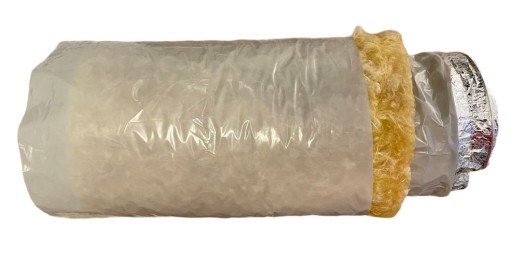

TYPE RAGIG - Medical Grade

TYPE RAGIG - Medical Grade

Tested and certified according to the standards UL 181 / ULC S110 Class 1 air connector. Medical Grade.

INSULATION: Non-Carcinogenic TEXTRAFINE (R4.2) 1 - 1 1/2” thick and 1lb density.

VAPOR BARRIER: Grey poly-vinyl jacket.

TYPE RAGIG 3 ply aluminum foil, totalling 45 mi- crons thick (.009mm) and resists up to 20” of static pressure. The inner, middle and outer plys incapsulate a spring steel helix and contain no openly dangerous constituents such as mylar (plastic) or neoprene. Perforated to resist vibrations. A second grey poly-vinyl jacket is pulled over the inside duct to prevent particles from entering the duct. A special requirement for HVAC systems in medical buildings.
